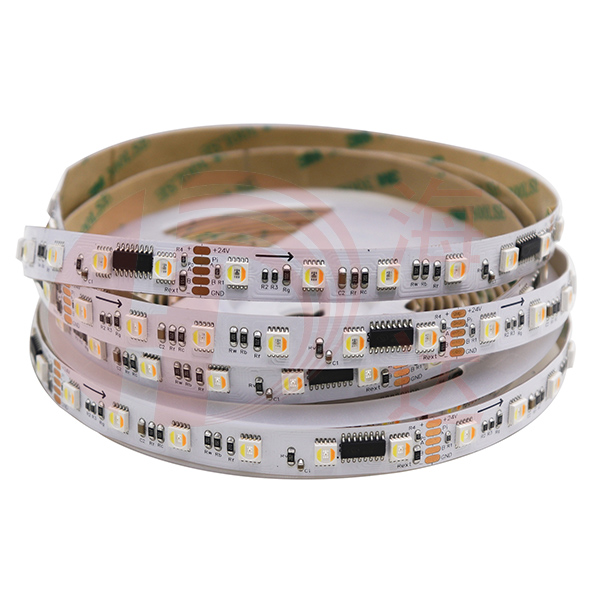

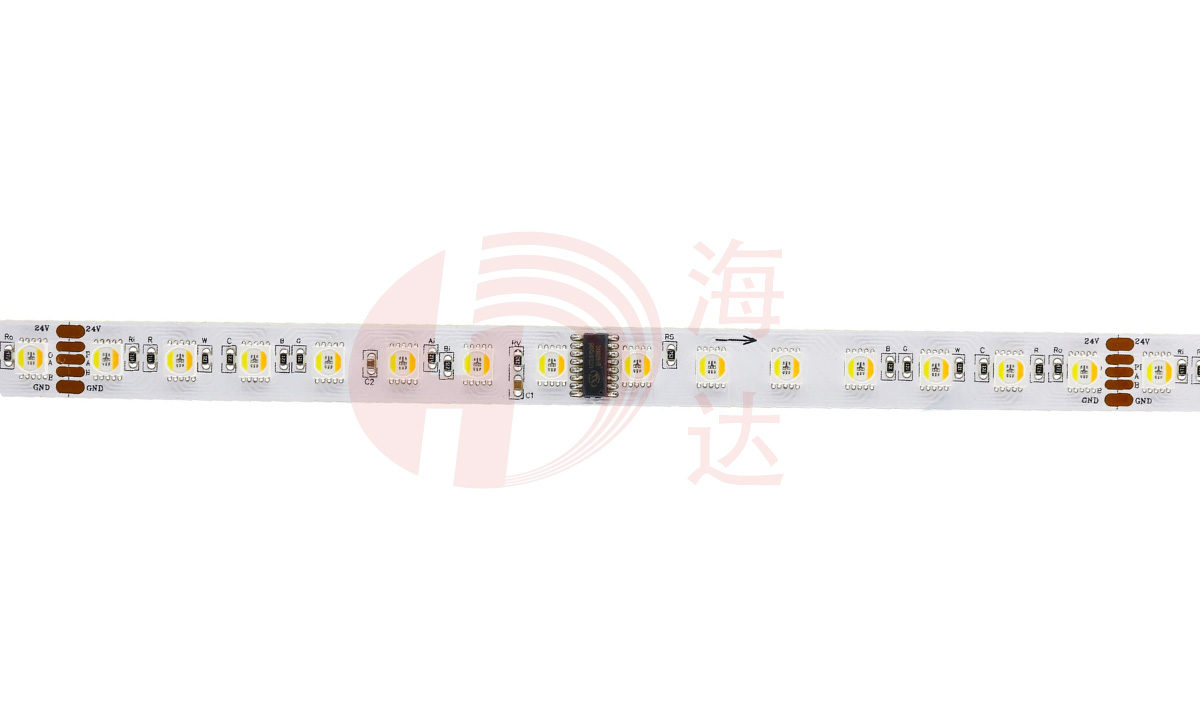

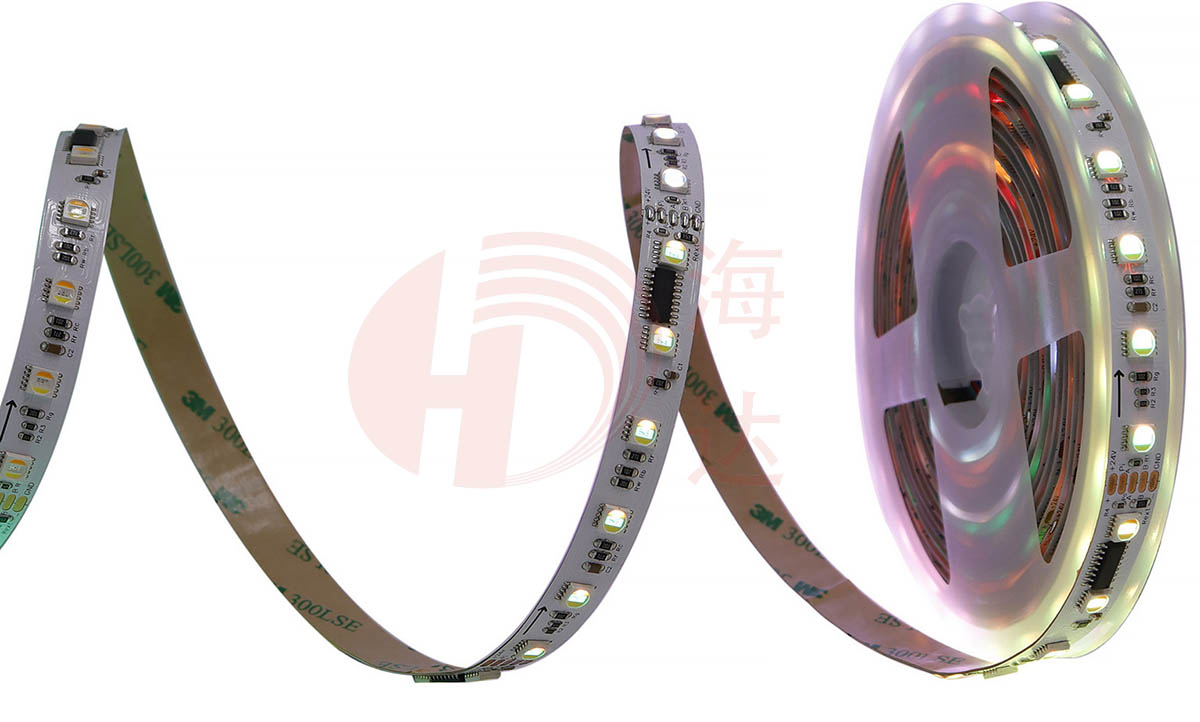

DMX512 RGBWW Pixel LED Strip UCS512 5in1 RGBCCT 60leds/m dc24V 10pixels 12mm PCB

Short Description:

1. UCS512 RGBWW Pixel LED Strip 60leds/m dc24V 10pixels 12mm

2. DC24V, 23W/M

3. 12mm width White / Black / yellow PCB

4. RGBW +3000K+6000K, or special CCT.

5. 3M adhensive tape on backside of non-waterproof strip

6. Support K-1000C/ K-8000C/ YM-501 /DMX512,Artnet to control

7.Standard DMX512 Signal wire digital control interface A,B

8. Widely used in entertainment, stage, live performance, Disco Club and TV Show, etc

Send email to us

Product Detail

Driving IC: UCS512
Working voltage: 24V DC
Power consumption: 18W per meter
Working temperature: -40 ℃ ~ 60 ℃
LED number: 84LEDs/m , 6pixels/m
Color: Color: RGB+3000K+6000k
Finish: white
Waterproof: Nonwaterproof with 3M tape on the back, IP67 water resistant silicone sleeve
FPC Width: 12mm
Reel Length: 5 meters
Viewing angle: ≥120
Lifespan: MTBF≥50000h

24V RGBW DMX512 LED strip Connection:
DC+: connect to power supply DC+
DMX+ (A): connect to controller DMX+ (A)
DMX- (B): connect to controller DMX- (B)
PI:Write the address,one address cable
GND: connect to power supply GND & controller GND
