DMX512 DC24V 140leds/m 10pixels RGBW Pixel LED Tape 8mm PCB strip suitable for dmx neon tube

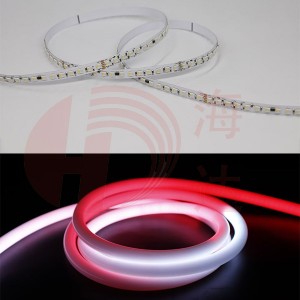

DMX512 DC24V 140leds/m 10pixels RGBW Pixel LED Tape 8mm PCB strip suitable for dmx neon tube Featured Image
  • DMX512 DC24V 140leds/m 10pixels RGBW Pixel LED Tape 8mm PCB strip suitable for dmx neon tube

Short Description:

1. DMX RGBW Pixel LED Tape 140leds/m dc24V 10pixels 8mm

2. DC24V, 21W/M

3. 8mm width White / Black / yellow PCB

4. RGBW +3000K/6000K, or special CCT.

5. 3M adhensive tape on backside of non-waterproof strip

6. Support K-1000C/ K-8000C/ YM-501 /DMX512,Artnet to control

7.Standard DMX512 Signal wire digital control interface A,B

8. Widely used in entertainment, stage, live performance, Disco Club and TV Show, etc

Product Detail

Product Tags

Driving IC: UCS512
Working voltage: 24V DC
Power consumption: 21W per meter
Working temperature: -40 ℃ ~ 60 ℃
LED number: 140LEDs/m , 10pixels/m
Color: Color: RGB+3000K/6000k
Finish: white
Waterproof: Nonwaterproof with 3M tape on the back, IP67 water resistant silicone sleeve
FPC Width: 8mm
Reel Length: 5 meters
Viewing angle: ≥120
Lifespan: MTBF≥50000h

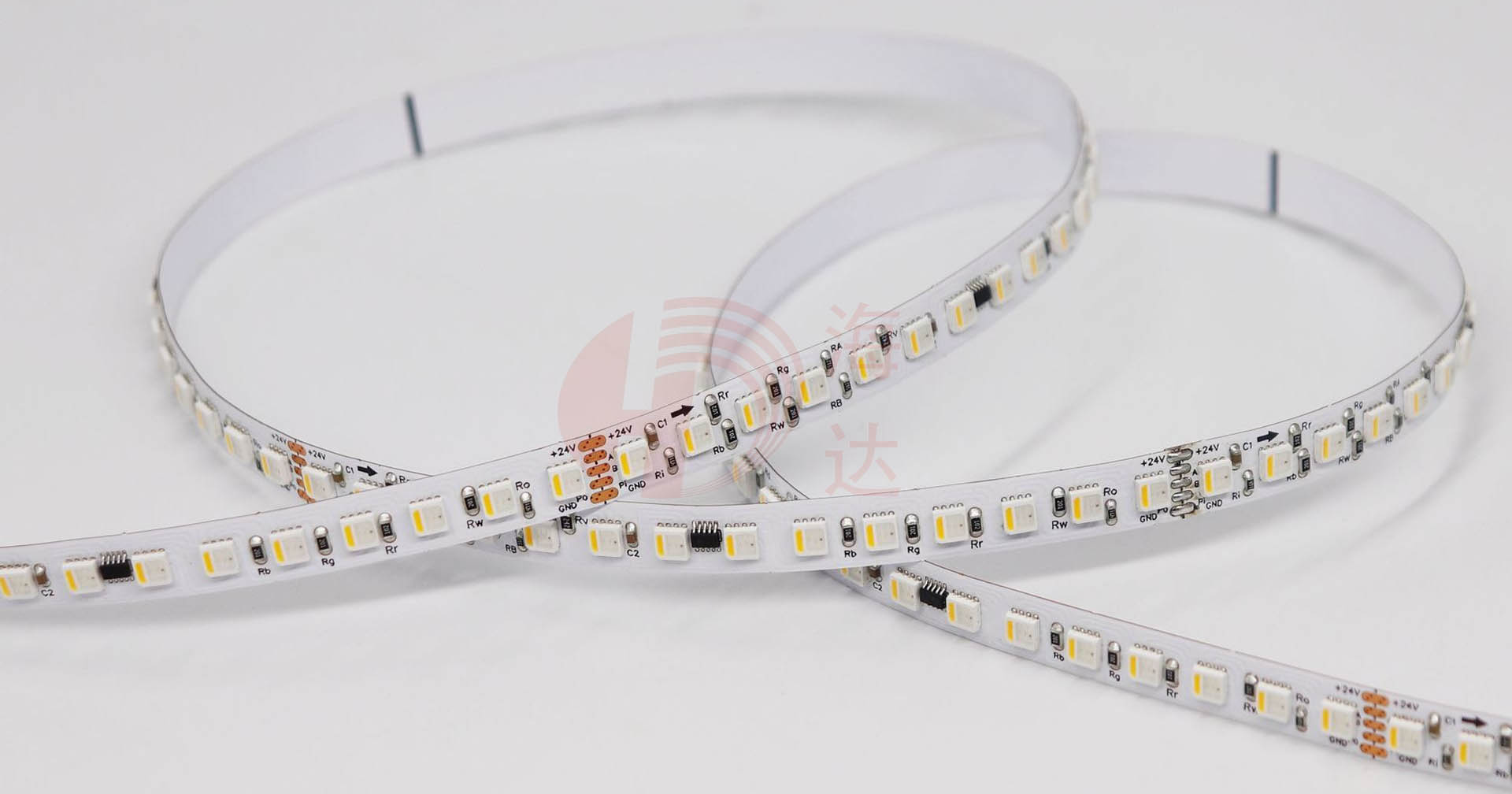

DC24V-DMX512-3535-RGBW-8mm-140leds-10pixels-dmx-led-strips-3



24V RGBW DMX512 LED strip Connection:
DC+: connect to power supply DC+
DMX+ (A): connect to controller DMX+ (A)
DMX- (B): connect to controller DMX- (B)
PI:Write the address,one address cable
GND: connect to power supply GND & controller GND
