HD108 2121 Pixel LED Chips black white face 6feet 2020 addressable LED IC driver
HD108 led chip
2121 size
can be black and white face
easy to make led strip
-
12V HD105 RGBW individually LED Chip Pixel IC driver SMD5050 WS2815 digital rgbw components two data cable
HD105 rgbw leds
12v individually two data cable
RGBW= RGB + White(3000k/4000k/6000k)
LED source :5050SMD RGBW/WW/WWA built-in HD105 IC, same protocol with ws2815, but higher brightness and PWM.
We Hida is the only one factory who can make DC12V HD105 RGBW LED chip -
HD107S 2121 Pixel LED Chips black white face 6feet 2020 addressable LED IC driver
HD107s led chip
2121 size
can be black and white face
easy to make led strip
-

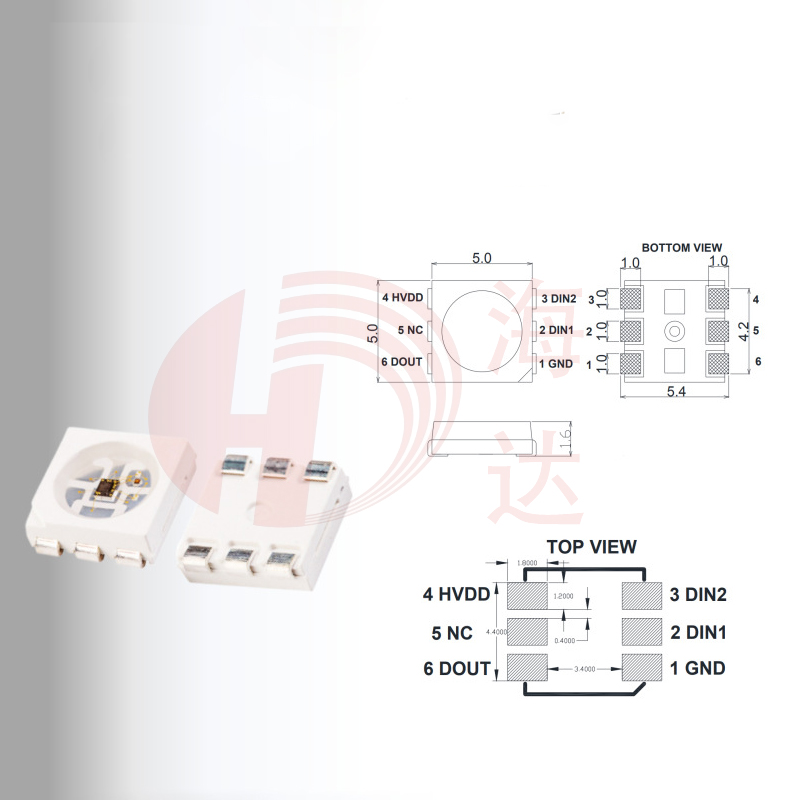

HD8808 WS2815 led chip UCS1903
12V addressable HD8808 5050 pixel rgb led chip HD8808 is an intelligent externally controlled LED that integrates a control circuit and a light-emitting circuit. Its appearance is the same as a 5050 LED . Each LED is a pixel.it is same function with addressable pixel 5050 WS2811/UCS1903 led, use same pcb design, pin to pin function and same control way.
The LED contains an intelligent digital interface data latch signal circuit. Power supply voltage regulator circuit, built-in constant current circuit, data regeneration circuit, high precision RC oscillator, output drive adopts patented PWM technology, which effectively guarantees the color consistency of the each pixel.
-

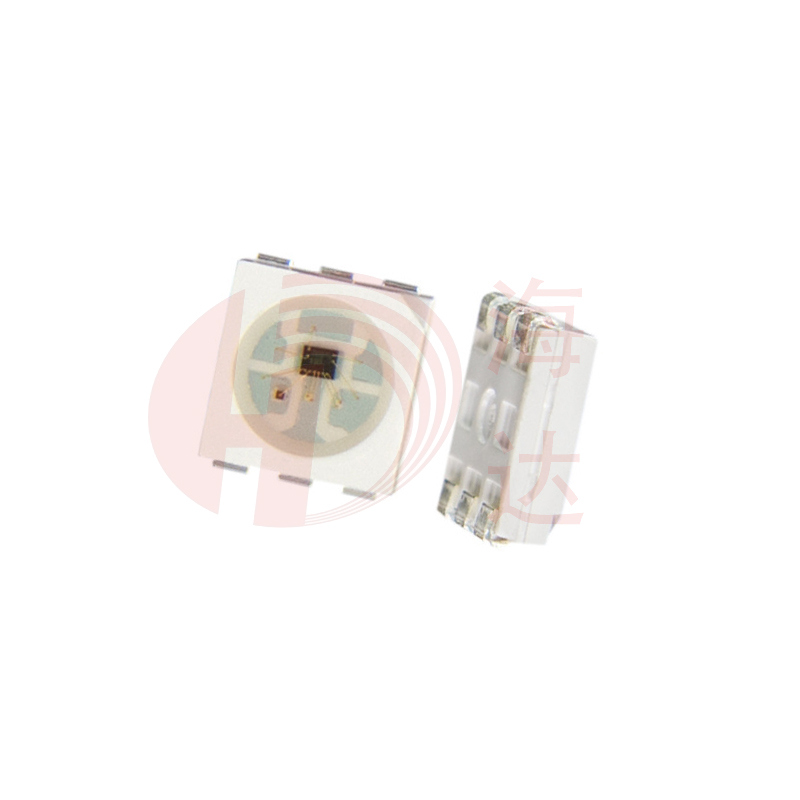

HD8808 WS2815 RGB Pixel LED Chip
HD8808 is same protocol with ws2815 dc12v, but much better, it is an intelligent externally controlled LED that integrates a control circuit and a light-emitting circuit. Its appearance is the same as a 5050 LED . Each LED is a pixel. HD8808 has the advantages of low voltage drive, environmental protection and energy saving, high brightness, large scattering angle, good consistency, long life and so on. The control circuit is integrated inside the LED. which makes the application circuit design easier, less original parts, and small in size. Beautiful, easier to install.
-
Black HD8808 WS2815 WS2813 2121 pixel rgb led chips data back up
1, The control circuit and RGB chip are integrated in a 2121 components, to form an external control pixel.
2, 5V WS2813 / 12V WS2815 DC power supply, can effectively reduce the operating current of the pixel LED, and decrease the voltage-drop of the PCB, this is to advance the consistency of the mixed lights for long-distance transmission.
3, Using the built-in signal reshaping circuit to achieve the signal waveform shaping, and no distortion of waveform ofsignal takes place.
4, The gray levels of each pixel are of 256 levels, which achieves “256*256*256=16777216” full-color display, and the refresh frequency reaches to 2KHz.
5, Serial cascade interface, data receiving and decoding depend on just one signal line.
6, Dual-signal wires version, signal break-point continuous transmission.
7, Any two point the distance more than 5M transmission signal without any increase circuit.
8, When the refresh rate is 30fps, cascade numbers is at least 1024 pixels.
9, Data transmitting at speeds of up to 800Kbps.
10, Good color consistency reliability, high cost-effective. -
HD8812 SK6812 4020 RGB RGBW Side View Pixel LED chip SMD 5V 12V
This pixel led smd is side view type, HD8812 4020 is same protocol with sk6812 4020/lc8812 4020, within SK6812 IC inside,packaged with the R,G,B,W color chips inside the 4020 side rgb/rgbw smd led,it is individual addressable rgb side firing led chip, and the default output constant Current Value, OUTR/ OUTG/OUTB/OUTW is 12MA. It can achieve individual single pixel control,point by point scanning,reach magic RGB/RGBW chasing, horse racing, gradual change and other color effects.
-
Waterproof connectors for COB LED Strips White CCT RGB RGBW 12V 24V 36V 48V 220V
COB LED Strip waterproof connectors
2P 3P 4Pin options
can be used for White CCT RGB RGBW cob led strip
3mm 4mm 5mm 8mm 10mm 12mm width PCB
-
Transparent DMX512 SPI DC24V 24V RGB RGBW Artnet removable LED Mesh Grid Matrix Screen 30/40/50/60/80/100/200mm Pixel Pitch
Size: PP30/40/50/60/80/100/200mm
Work Voltage: DC12V/DC24V
Power: 288W （PP50/Sqm）
Color: RGB（3*8bit）(RGBW can be custom)
Beam Angle: 140°
Permeability: 48%
Weight: 7.9 KG（PP50/Sqm)
Control protocol: DMX512/SPI -
DMX RGB RGBW RGBCCT White CCT DMX512 SPI LED Linear light wall washer dmx light strip rigid bar
- High quality and durable construction
- Easy to install and remove
- Cables routed from the center to avoid dark spots
- 24V-48V compatible for long-lasting performance
- Runs up to 40 meters with a single power lead
-
UCS7604 16bit 65536 high grayscale rgbw 4in1 pixel LED Strips dc24v two data cable
what is the differnet between 8-bit with 16-bit?
- 16-bits：65,536 level grayscale × 0-255 brightness adjustment =16.77 million colors ×Brightness dimension（actual presentation of 4.47 billion color states）
- 8-bits：256 level grayscale × 0-255 brightness adjustment= 16.70 million colors（actually it only shows linear changes）
-
HIDA WS2815 RGBW Pixel LED Tapes DC12V NS8808 RGBW 4in1 30leds 60leds 96leds 144leds
WS2815/NS8808
RGBW 3000K/4000K/5000K/6000K
DC12V
Two data cable
Black/White PCB
30leds 60leds 72leds 144leds
