Pixel LED Chip
-
SK6812 3535 12V RGBW LED Chip 3535SMD HD8812 WS2812B mini rgbw LEDs
12v individually sk6812 3535 mini rgbw
RGBW= RGB + White(3000k/4000k/6000k)
LED source :3535SMD RGBW/WW/WWA built-in SK6812 chip
We Hida can also provide 5v sk6812 3535 rgbw led chip -
SK6812 3535 5V RGBW LED Chip 3535SMD HD8812 WS2812B mini rgbw LED components
sk6812 3535 mini rgbw
5v individually
RGBW= RGB + White(3000k/4000k/6000k)
LED source :3535SMD RGBW/WW/WWA built-in SK6812 chip
We Hida can also provide 12v sk6812 3535 rgbw led chip -

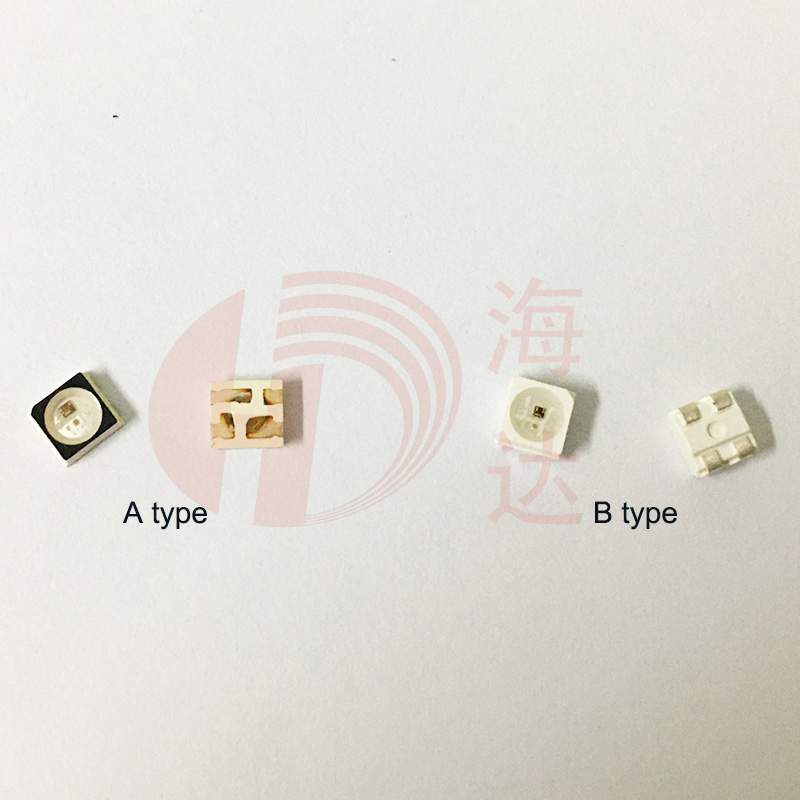

SK6812 3535 LED Chip mini HD6812 WS2812B 3535 components black white face 4feet
HD6812B-3535/SK6812mini LED are pin to pin function,same lighting effect,same control way. HD6812B-3535 is an intelligent externally controlled LED that integrates a control circuit and a light-emitting circuit.Its appearance is the same as a 3535 LED . Each LED is a pixel.The data protocol adopts a unipolar return-to-zero code communication method. After the LED is powered on, the DIN terminal receives external signal data, and the data regeneration circuit automatically reshapes and forwards the cascaded output data to ensure that the data is transmitted in series without attenuation and normal transmission.
-
HD8813 WS2813 Pixel LED Chip SMD5050
HD8813 WS2813 and LC8813 LEDs are pin to pin function,same lighting effect,same control way. HD8813 is an intelligent externally controlled LED that integrates a control circuit and a light-emitting circuit. DC5Vaddressable, and each LED is a pixel. The LED contains an intelligent digital interface data latch signal circuit. , Power supply voltage regulator circuit, built-in constant current circuit, data regeneration circuit, high precision RC oscillator, output drive adopts patented PWM technology, which effectively guarantees the color consistency of the each pixel,and the default output constant current value OUTR/OUTG/OUTB is 12MA.
-
HD107 APA107 LC8822 digital LED Chip with clock wire SMD5050
HD107 is same with APA107, the upgrade type of APA102 with 9khz fresh rate, some factory named LC8822, and some company use it to replace apa102 and sk9822, HD107 use big chip, more brighter, less Luminous Attenuation, better heat dissipation,which has one double signal line– the data cable and clock cable.After a series of improvement design,it can well compatible with other two signal IC,and share the same controller system. It is compatible with SK9822/APA102 and pin to pin function, using same pcb design and control way, one led 1pixel addressable.
-
HD107S NS107S LC8823 LED Chip with clock wire high fresh rate SMD5050
HD107S is developed by HIDA, we are the original mabufacturer, some factory named LC8823, and some one use it to replace APA102, it is addressable 5050 rgb led chip,with our newest circuit technology ,the PWM frequency can be as high as 27kHz,so can be very high signal data transfer speed,and the default output constant current value OUTR/OUTG/OUTB is 17MA. This super speed is good for many big projects with huge pixels,and lot of data transfer. Greatly use as the lighting source of the digital led strips and led display and many other PCBA. DC5V one led 1 pixel , compatible with APA102/SK9822, pin to pin function, same control way, but faster FPWM
-
WS2813 RGBW Addressable LED Components Chip SMD5050
WS2813 5050 RGBW LED chip is an intelligent control LED light source that the control circuit and RGBW chip are integrated in a package of 5050 components. Its internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a DC5V voltage programmable constant current control part, which achieves highly consistent color effect.
-
HD108 2121 Pixel LED Chips black white face 6feet 2020 addressable LED IC driver
HD108 led chip
2121 size
can be black and white face
easy to make led strip
-
12V HD105 RGBW individually LED Chip Pixel IC driver SMD5050 WS2815 digital rgbw components two data cable
HD105 rgbw leds
12v individually two data cable
RGBW= RGB + White(3000k/4000k/6000k)
LED source :5050SMD RGBW/WW/WWA built-in HD105 IC, same protocol with ws2815, but higher brightness and PWM.
We Hida is the only one factory who can make DC12V HD105 RGBW LED chip -
HD107S 2121 Pixel LED Chips black white face 6feet 2020 addressable LED IC driver
HD107s led chip
2121 size
can be black and white face
easy to make led strip
-
Black HD8808 WS2815 WS2813 2121 pixel rgb led chips data back up
1, The control circuit and RGB chip are integrated in a 2121 components, to form an external control pixel.
2, 5V WS2813 / 12V WS2815 DC power supply, can effectively reduce the operating current of the pixel LED, and decrease the voltage-drop of the PCB, this is to advance the consistency of the mixed lights for long-distance transmission.
3, Using the built-in signal reshaping circuit to achieve the signal waveform shaping, and no distortion of waveform ofsignal takes place.
4, The gray levels of each pixel are of 256 levels, which achieves “256*256*256=16777216” full-color display, and the refresh frequency reaches to 2KHz.
5, Serial cascade interface, data receiving and decoding depend on just one signal line.
6, Dual-signal wires version, signal break-point continuous transmission.
7, Any two point the distance more than 5M transmission signal without any increase circuit.
8, When the refresh rate is 30fps, cascade numbers is at least 1024 pixels.
9, Data transmitting at speeds of up to 800Kbps.
10, Good color consistency reliability, high cost-effective. -
HD8812 SK6812 4020 RGB RGBW Side View Pixel LED chip SMD 5V 12V
This pixel led smd is side view type, HD8812 4020 is same protocol with sk6812 4020/lc8812 4020, within SK6812 IC inside,packaged with the R,G,B,W color chips inside the 4020 side rgb/rgbw smd led,it is individual addressable rgb side firing led chip, and the default output constant Current Value, OUTR/ OUTG/OUTB/OUTW is 12MA. It can achieve individual single pixel control,point by point scanning,reach magic RGB/RGBW chasing, horse racing, gradual change and other color effects.
