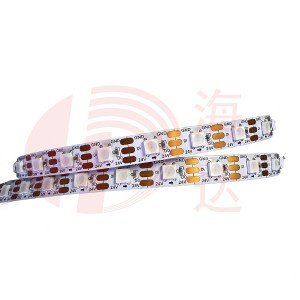

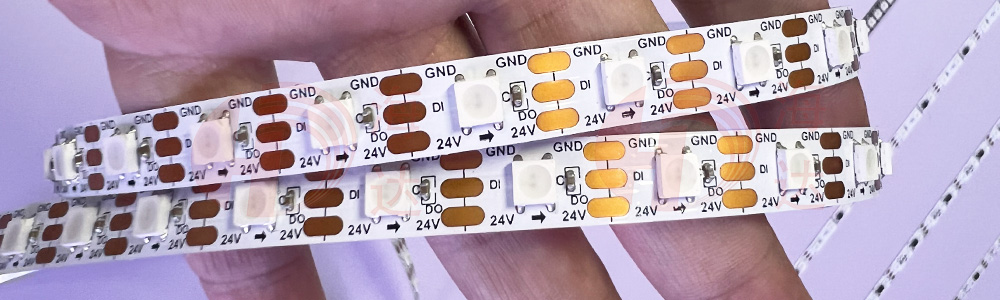

DC24V SK6812 HD6812 individually addressable 24v pixel LED tapes 1led one IC pixel strips led
Product Specifications:
| Product Name | 24v individually pixel LED taps |
| LED type | 5050 SMD LED |
| IC type | SK6812 |
| Emitting color | Digital RGB |
| LED Q’ty | 60leds/m |
| Pixel Q’ty | 60pixel/m |
| LED View angle | 120 Degree |
| PCB Color | White/Black |
| IP Rating | IP20, IP65, IP67, IP68. |
| Length/Roll | 5M/Roll, strip length can be customized |
| Working Voltage | DC24V |
| Certification: | CE, EMC, FCC, LVD, RoHS |
| CRI (Ra>): | 80 |
| Warranty(Year) | 3-Years |
|
Model |
LED Qty |
IC Qty |
Voltage |
Max Power |
Gray Scale |
Color |
Width |
|
NSS-6812S30RGB-24V |
30 |
30 |
24V |
9W/M |
256 |
Digital RGB |
10mm |
|
NSS-6812S60RGB-24V |
60 |
60 |
18W/M |
256 |
10mm |
||
|
NSS-6812S72RGB-24V |
72 |
72 |
21.6W/M |
256 |
12mm |
||
|
NSS-6812S96RGB-24V |
96 |
96 |
28.8W/M |
256 |
12mm |
||
|
NSS-6812S144RGB-24V |
144 |
144 |
43.2W/M |
256 |
12mm |
Application:

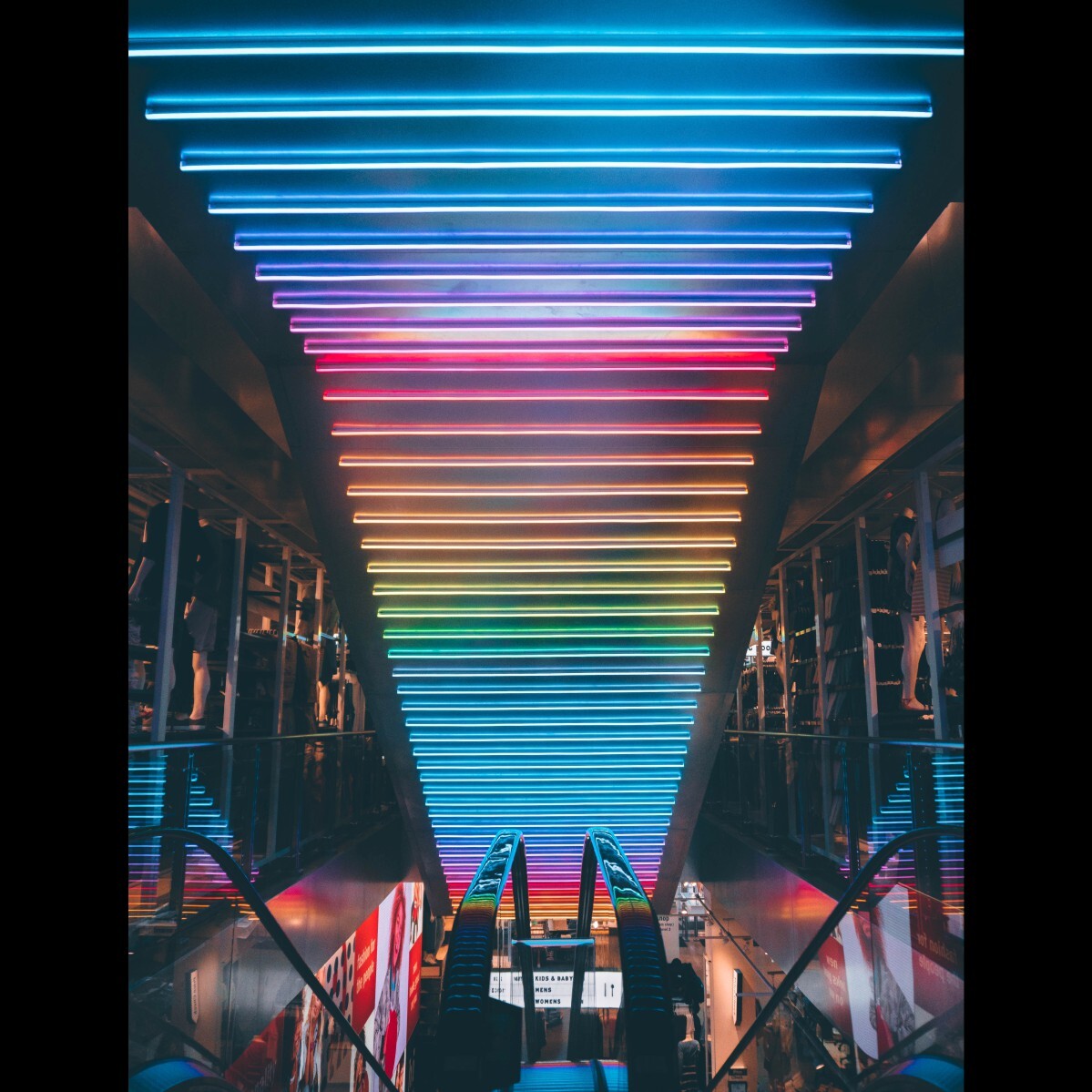

It is good for the led strip project with lot pixels,such as the digital strip wall,and the addressable strip decoration for building.
LED Strip Connection Diagram:
NOTE
1. The AC wiring must be connected to the ground wire to prevent electric shock.
2. The overload current of the main wire of the LED Strip is the sum of the currents of the sub-wires, so in actual engineering applications, the model of the main wire should be appropriately increased to prevent the wire from overheating and accidents.
3.The specification is only for regular quotation products, specific products have specified parameters, which are not within the scope of this specification.
